Ledeen Direct Hydraulic LCH - 'Cyl' Series Actuators

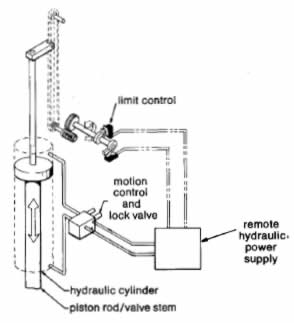

Operating from a Central Hydraulic System or from remotely located powerpack. Pressure ranges up to 5000 psi. Thrust and speed control, limit switch pack and motion control are all identical to those employed on the LCP/H and LCE/H 'C' Series actuators.

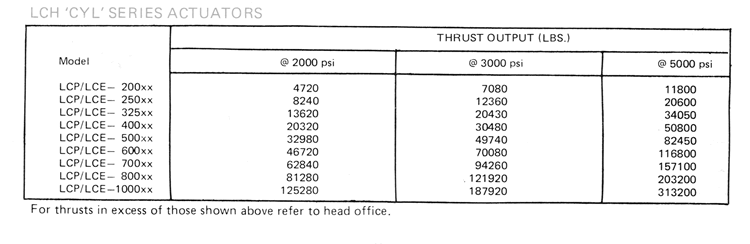

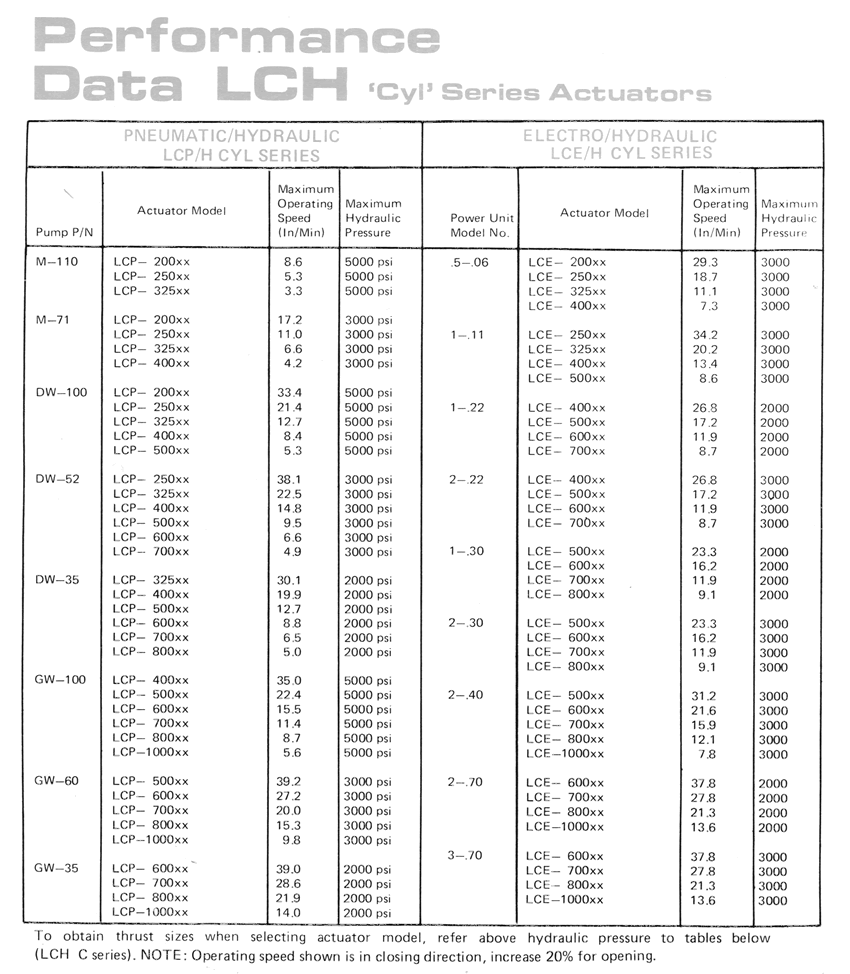

Performance Data LCH 'Cyl' Series Actuators
